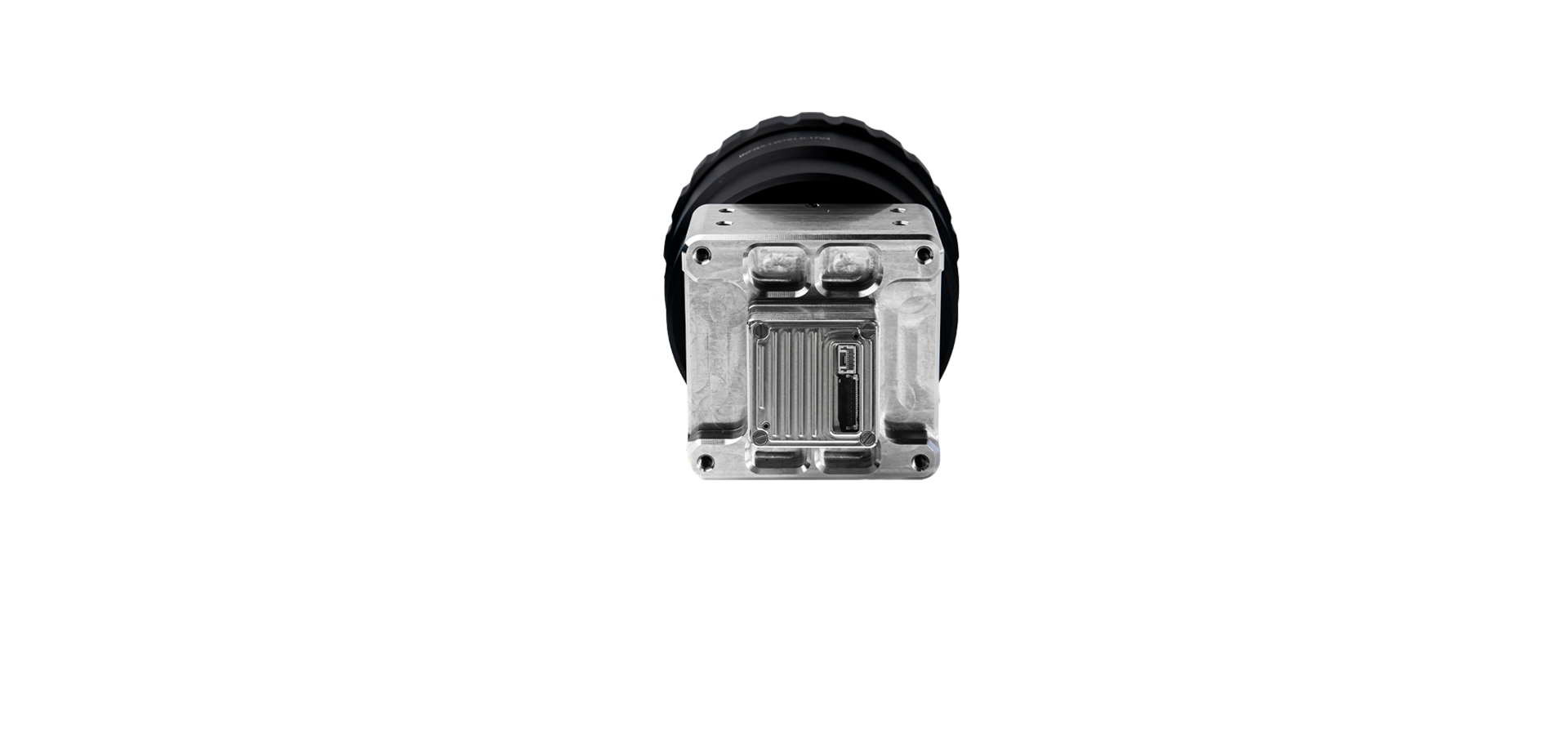

Oko Pro 8.3°

Narrow-angle 75-mm thermal imaging camera for computer vision algorithms. Optimized for anti-FPV turrets, Counter-UAS, and visual navigation. Designed for applications that require high precision and long-range observation.

Oko Pro 8.3°

It features customizable mission-specific image modes, ultra-low latency, and on-board video processing. An SDK is available for host processing. Fully compatible with Raspberry Pi. Manufactured with Ukrainian and European components. Testing upon request.

Key specifications

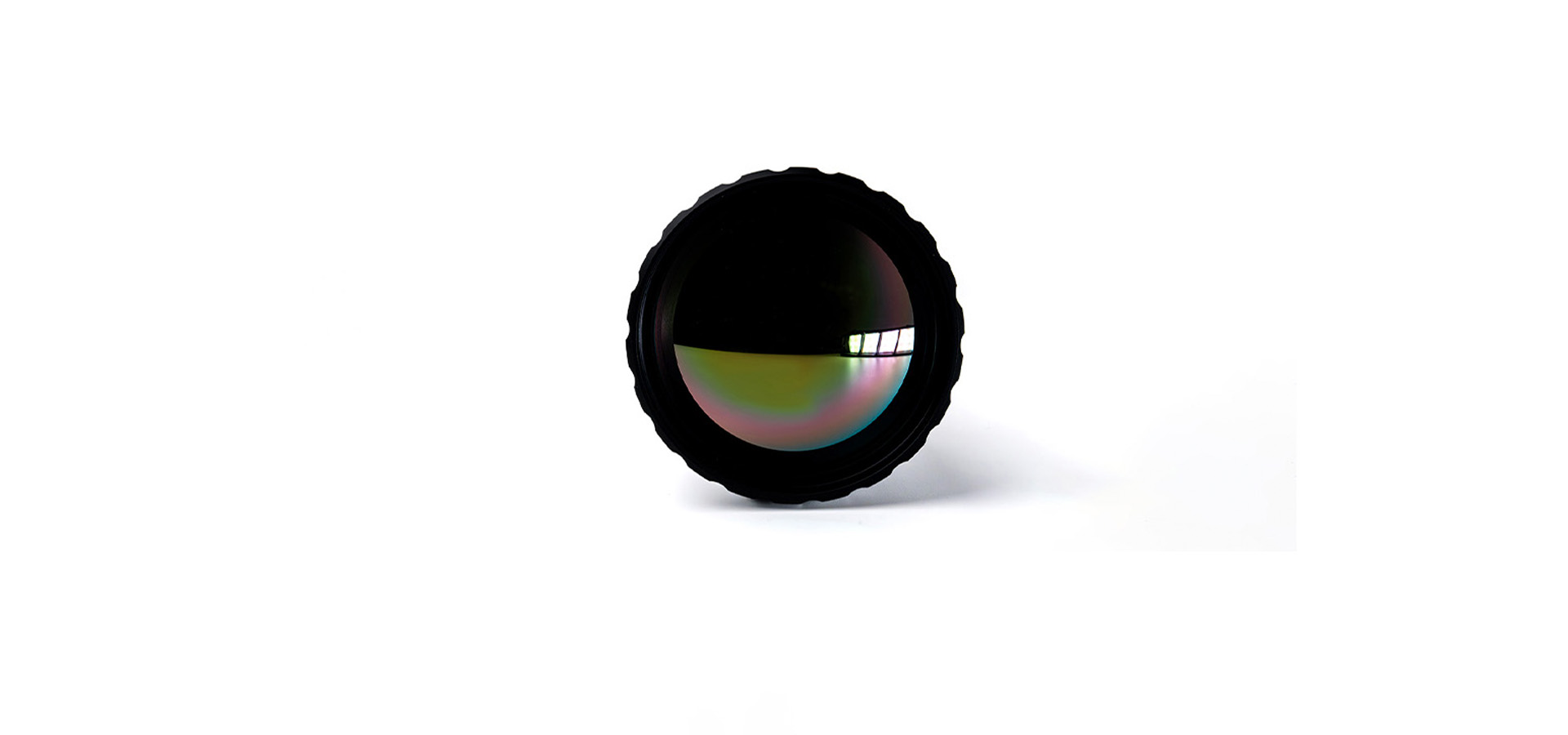

Lens

75 mm, f/1.0, FOV 8.3°×5.9°

Resolution, Pixel Pitch

640x480, 17 μm

NETD

<30 mK

Frame Rate

30 / 60 Hz

Interface options

Ultra-low latency and on-board video processing

Full specifications

Resolution, Pixel Pitch

640x480, 17 μm
NETD

<30 mK (f/1.0, 300 K, 30 Hz)
Frame rate

30 / 60 Hz
Glass-to-PU Latency

33.6 ms / 16.9 ms
Output Video Format

Y16 / Y8
NUC (Non-Uniformity Correction)

shutterless, factory-calibrated from -20 °С to +55 °С
Focal Length

75 mm
HFOV

8.3°
f-number

1.0
Focus Type

fixed
Lens Coating

thermally stabilized, anti-reflective (AR)
Zoom

digital, continuous, 1-8x
Dimensions (with lens)

124×89×89 mm
Weight (with lens, typical)

635 g
Housing

aluminum
Power Supply

DC 5 V ± 0.8 V
Power Consumption (typical)

1.8 W
Operating Temperature

-33 °C – +55 °C
