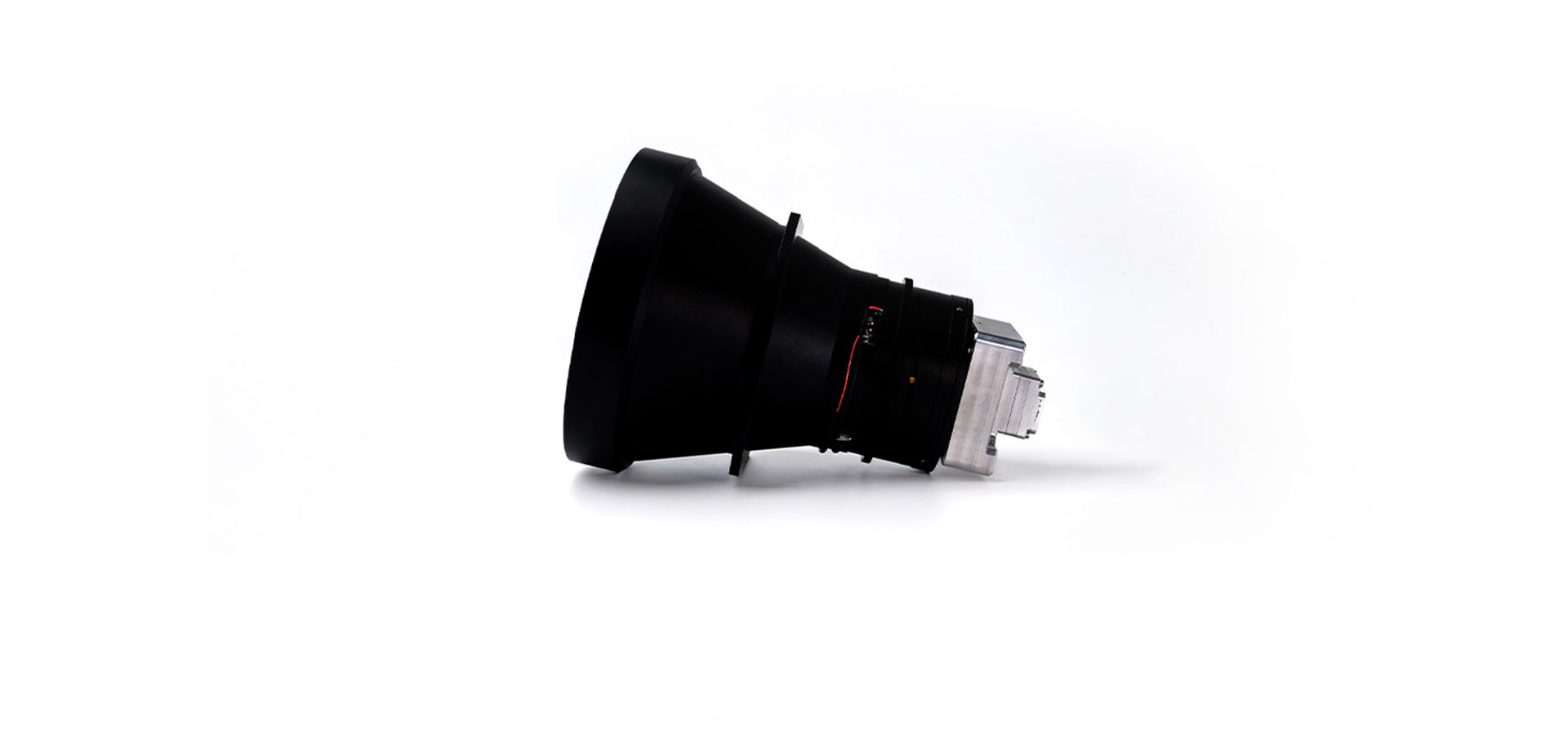

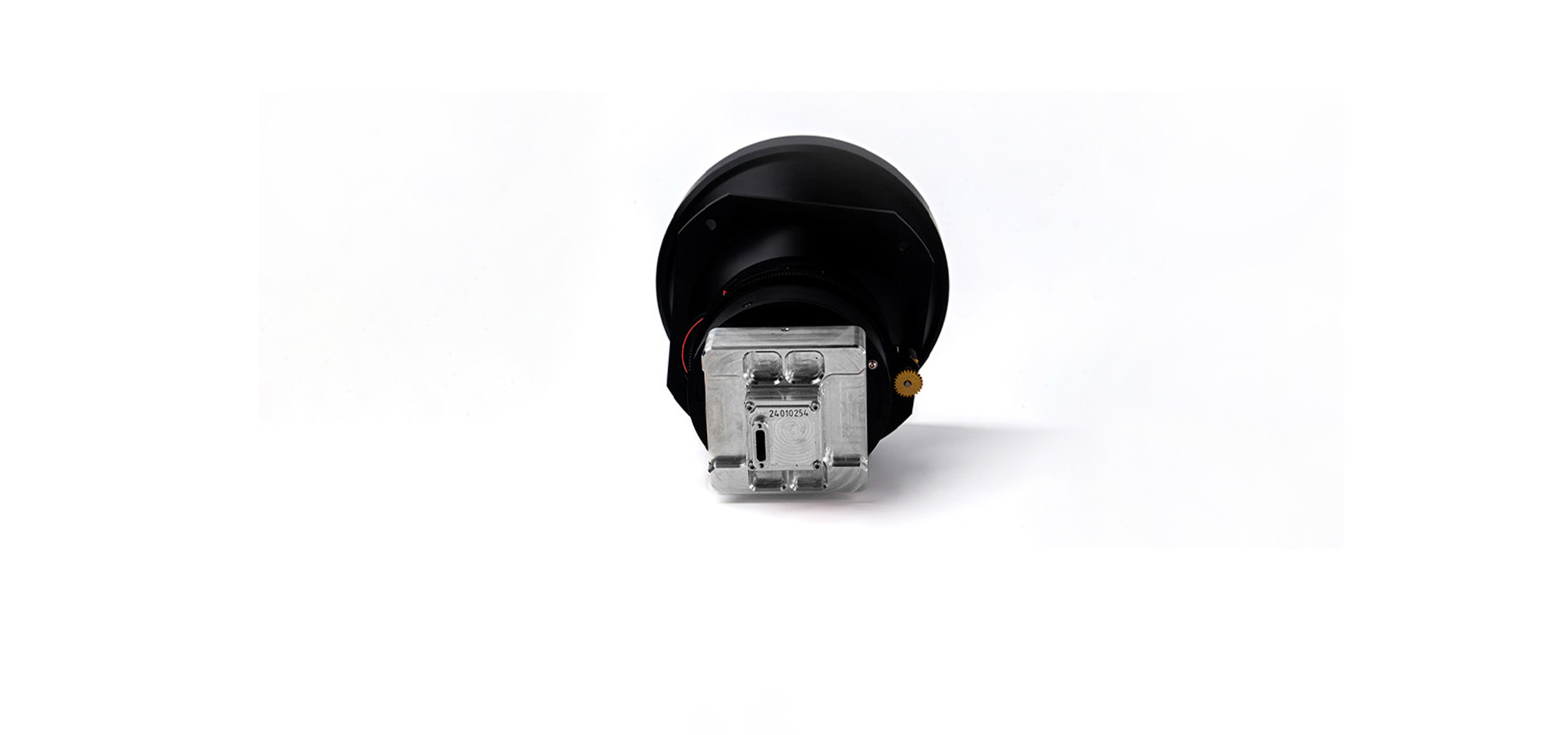

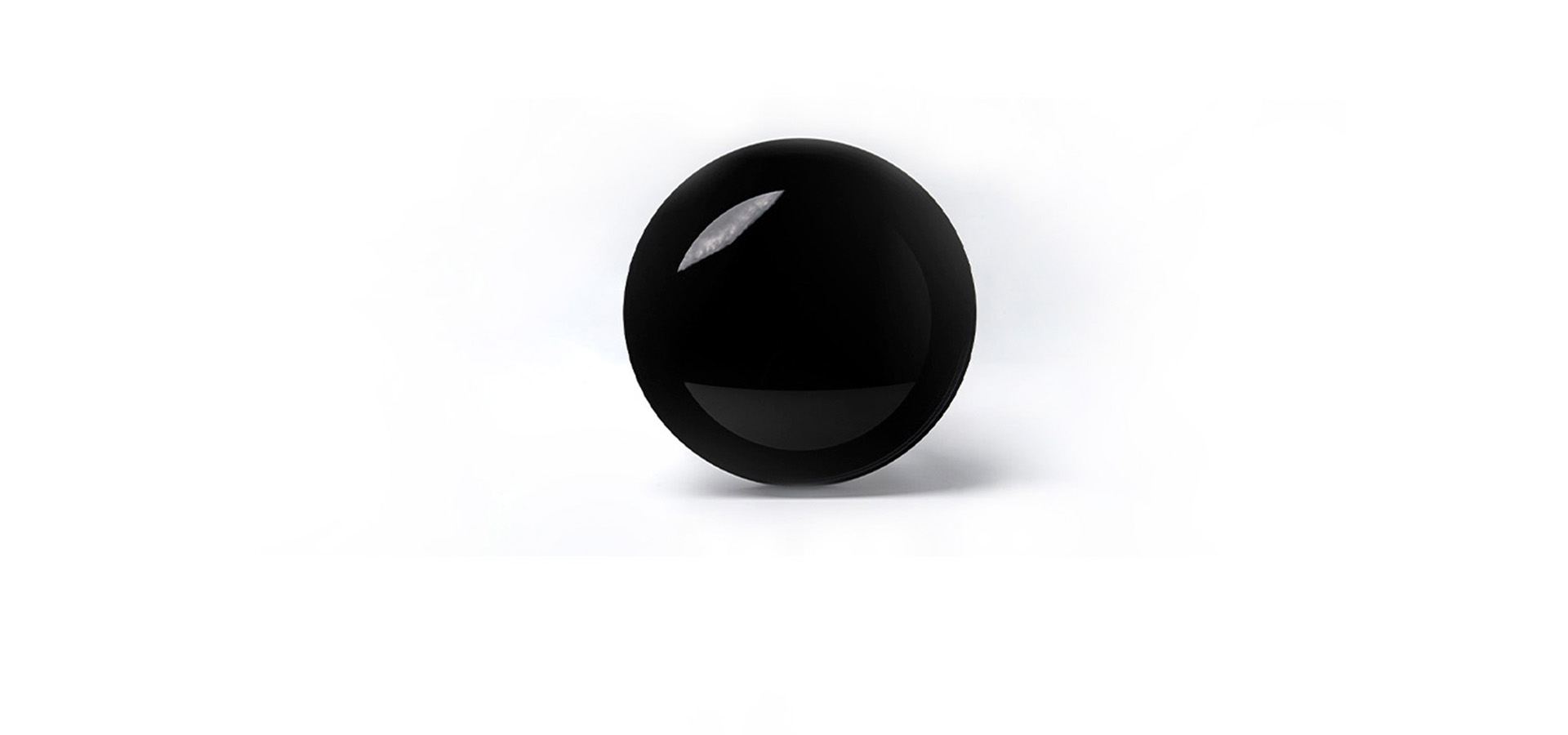

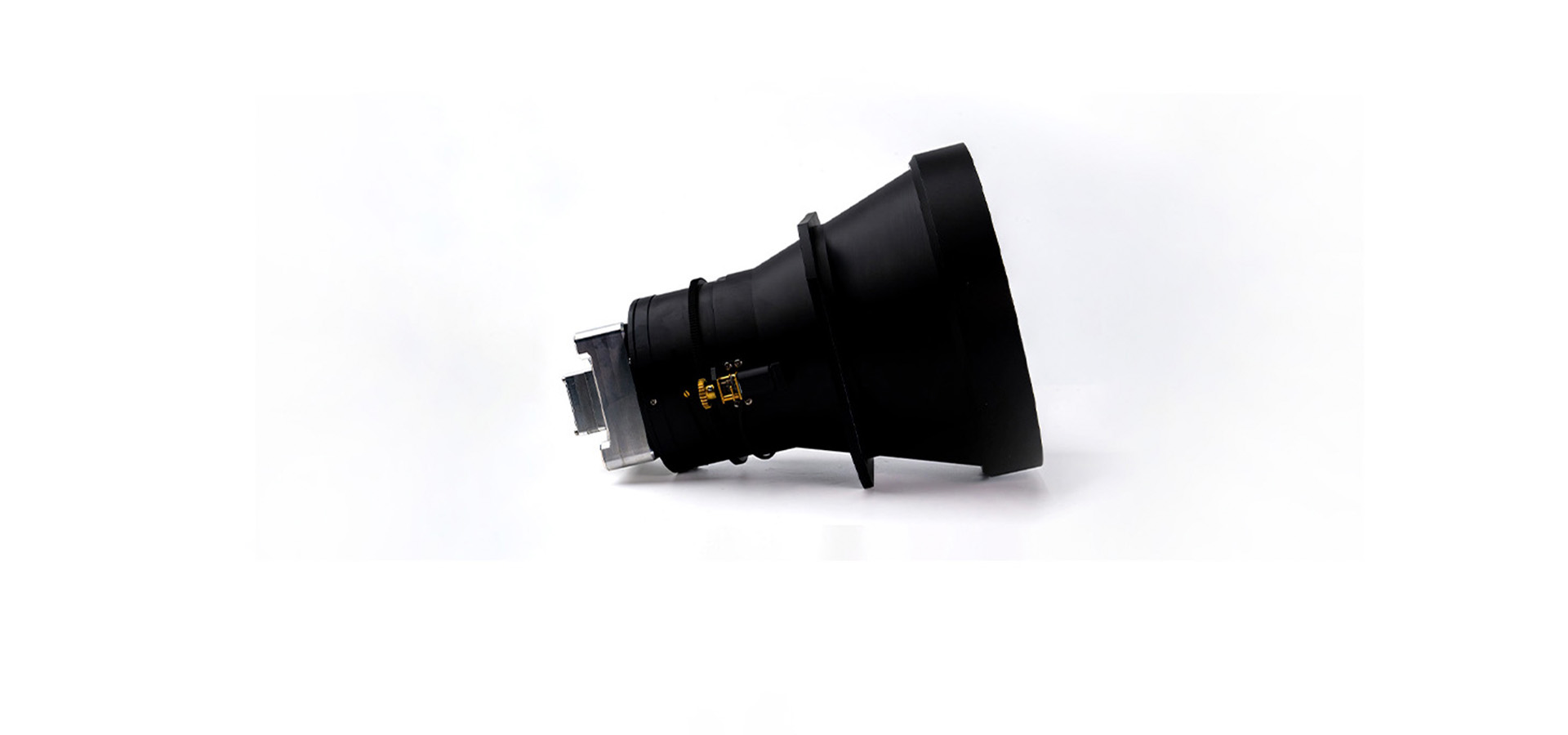

Oko Core 4.2° (OCT640-17-150)

The largest camera in the lineup. Its 150 mm lens with the narrowest field of view and motorized focus provides observation and target detection at distances of up to 15 kilometers.

Oko Core 4.2° (OCT640-17-150)

Featuring an ultra-sensitive detector, high-quality optics, and special calibrating and post-processing algorithms, this camera delivers clear imagery in low-visibility or adverse weather conditions (fog, rain, snow) and even during explosions.

Oko Core 4.2° (OCT640-17-150)

Manufactured with Ukrainian and European components. Testing available upon request.

Oko Core 4.2° (OCT640-17-150)

Manufactured with Ukrainian and European components. Testing available upon request.

Key specifications

Lens

150 mm, F/1.0, FOV 4.2° x 3.1°

Resolution, Pixel Pitch

640x480, 17 μm

NETD

<30 mK

Frame Rate

30 / 60 Hz

Interface options

Connection to microcomputers (including Raspberry Pi)

Full specifications

  • Resolution, Pixel Pitch

    640x480, 17 μm

  • NETD

    <30 mK (f/1.0, 300 K, 30 Hz)

  • Frame rate

    30 / 60 Hz

  • Glass-to-PU Latency

    33.9 ms / 16.9 ms

  • Output Video Format

    Y16

  • NUC (Non-Uniformity Correction)

    shutterless, factory-calibrated from -20 °С to +55 °С

  • Focal Length

    150 mm

  • HFOV

    4.2°

  • f-number

    1.0

  • Focus Type

    motorized

  • Lens Coating

    DLC

  • Zoom

    digital, continuous, 1-8x

  • Dimensions (with lens)

    225x164x164 mm

  • Weight (with lens, typical)

    1770 g

  • Housing

    aluminum

  • Power Supply

    DC 5 V ± 0.5 V; 9 V ± 3 V for focus

  • Power Consumption (typical)

    1 W; 0.12 – 0.36 W for focus

  • Operating Temperature

    -20 °С – +50 °С
